Servo Controller Part
Technology from korea,made in China
| AF 注塑机参数对照表 | 1155/260 | ||||
| 技术参数 | Description | 单 位 | AF330 | ||
| Injection unit | 射胶系统 | Unit | A | B | C |
| 理论注射容积 | Shot Volume | cm3 | 1095 | 1270 | 1458 |
| 实际注射量（ps） | Shot Weight(ps) | g | 1007 | 1168 | 1341 |
| 实际注射量（ps） | Shot Weight(ps) | Oz(盅司) | 35.5 | 41.2 | 47.3 |
| 螺杆直径 | Screw Diameter | mm | 65 | 70 | 75 |
| 注射压力 | Injection Pressure | Mpa | 181 | 156 | 136 |
| 理论注射速率 | Injection Rate | g/sec | 244 | 283 | 325 |
| 螺杆长杆比 | Screw L/D Ratio | 23.7 | 22 | 20.5 | |
| 螺杆行程 | Screw Stroke | mm | 330 | ||
| 螺杆转速 | Screw Speed(stepless) | Rpm | 0～139 | ||
| CLAMPING UNIT 锁模系统 | |||||
| 锁模力 | Clamping Force | ton | 330 | ||
| 开模行程 | Opening Stroke | mm | 650 | ||

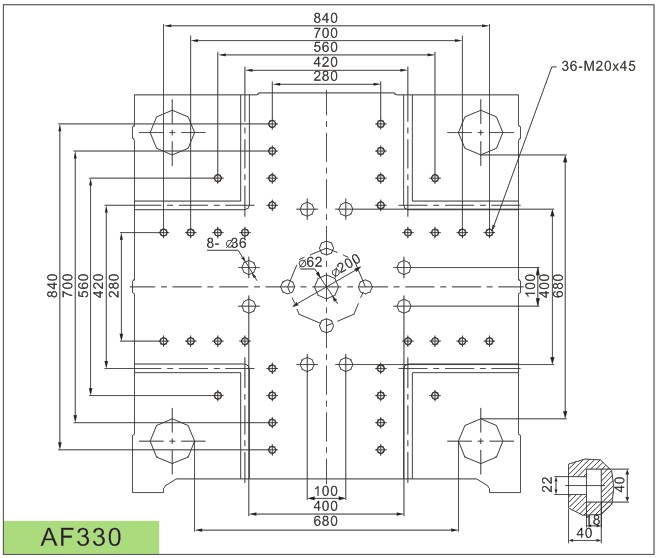

| 模板尺寸 | Platen Size | mmxmm | 980x980 | ||
| 拉杆间距 | Space Between Tie Bars | mmxmm | 680x680 | ||
| 模板最大距离 | Max. Daylight | mm | 1330 | ||
| 容模量（最薄-最厚） | Mold Thickness(min.-max.) | mm | 220-680 | ||
| 顶出行程 | Hydraulic Ejection Stroke | mm | 190 | ||
| 顶出力 | Hydraulic Ejection Force | ton | 9 | ||
| 顶针数 | Ejector Pin | Unit | 13 | ||
| POWER UNIT 电力/电热 | |||||
| 最大油泵压力 | Max Pump Pressure | Mpa | 16 | ||
| 油泵电机 | Pump Motor | Kw | 30 | ||
| 电热量 | Heating Capacity | Kw | 23 | ||
| 温度控制区数 | Number of Temp Control Zones | Unit | 5 | ||
| GENERAL UNIT 其他 | |||||
| 油箱容积 | Oil Tank Capacity | L | 600 | ||
| 外形尺寸（LxWxH） | Machine Dimensions | mxmxm | 6.9x1.7x2.3 | ||
| 理论机重 | Machine Weight | ton | 12.5 | ||
